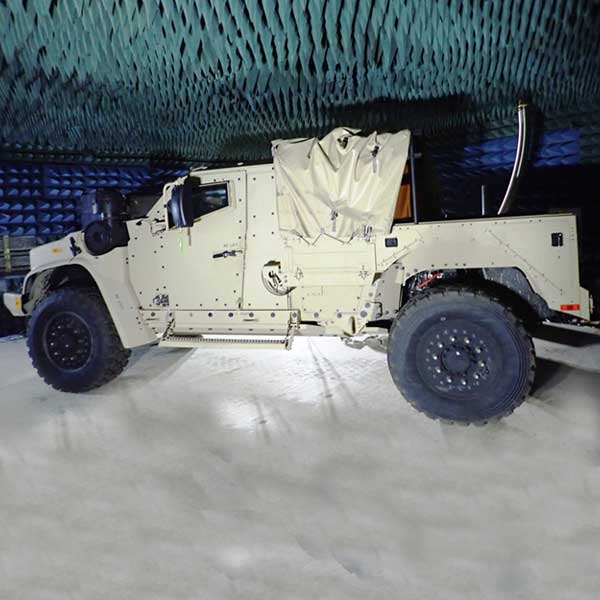

  • Joint Light Tactical Vehicle in Test Chamber
  • bootstrap image slider
  • Testing to MIL-STD-461 A-G

Testing to MIL-STD-461A, B, C, D, E, F, and G

DTB offers exceptional electromagnetic pulse (EMP) testing and owns the largest RS105 simulator of its kind, by far, in any US non-government test facility.

This test is applicable to equipment and subsystem enclosures when the equipment or subsystem is located externally to a hardened (shielded) platform or facility. It is also applicable for equipment intended solely for use on non-metallic platforms. In addition, the requirement also pertains to Army aircraft for safety critical equipment and subsystems located in an external installation. The military needs to ensure that critical equipment survives and/or works properly in various circumstances.

  • MIL-STD-461A: CE01, CE02, CE03, CE04, CE05, CE06, CE07
  • MIL-STD-461B: CE01, CE02, CE03, CE04, CE05, CE06, CE07
  • MIL-STD-461C: CE01, CE02, CE03, CE04, CE05, CE06, CE07
  • MIL-STD-461D: CE101, CE102, CE106
  • MIL-STD-461E: CE101, CE102, CE106
  • MIL-STD-461F: CE101, CE102, CE106
  • MIL-STD-461G: CE101, CE102, CE106
  • RTCA/DO-160
  • UK DEF STAN 59-411
  • CISPR 11
  • CISPR 22
  • CISPR 25

  • MIL-STD-461A: CS01, CS02, CS03, CS04, CS05, CS06, CS07, CS08, CS09, CS10, CS11, CS12, CS13
  • MIL-STD-461B: CS01, CS02, CS03, CS04, CS05, CS06, CS07, CS08, CS09, CS10, CS11, CS12, CS13
  • MIL-STD-461C: CS01, CS02, CS03, CS04, CS05, CS06, CS07, CS08, CS09, CS10, CS11, CS12, CS13
  • MIL-STD-461D: CS101, CS103, CS104, CS105, CS109, CS114, CS115, CS116
  • MIL-STD-461E: CS101, CS103, CS104, CS105, CS109, CS114, CS115, CS116
  • MIL-STD-461F: CS101, CS103, CS104, CS105, CS106, CS109, CS114, CS115, CS116
  • MIL-STD-461G: CS101, CS103, CS104, CS105, CS109, CS114, CS115, CS116
  • RTCA/DO-160

  • MIL-STD-461A: RE01, RE02, RE03
  • MIL-STD-461B: RE01, RE02, RE03
  • MIL-STD-461C: RE01, RE02, RE03
  • MIL-STD-461D: RE101, RE102, RE103
  • MIL-STD-461E: RE101, RE102, RE103
  • MIL-STD-461F: RE101, RE102, RE103
  • MIL-STD-461G: RE101, RE102, RE103

  • MIL-STD-461A: RS01, RS02, RS03, RS04, RS05, RS06
  • MIL-STD-461B: RS01, RS02, RS03, RS04, RS05, RS06
  • MIL-STD-461C: RS01, RS02, RS03, RS04, RS05, RS06
  • MIL-STD-461D: RS101, RS103, RS105
  • MIL-STD-461E: RS101, RS103, RS105
  • MIL-STD-461F: RS101, RS103, RS105
  • MIL-STD-461G: RS101, RS103, RS105
  • RTCA/DO-160
  • EN 61000-4-3
  • IEC 61000-4-3
  • UK DEF STAN 59-41
  • UK DEF STAN 59-411

  • MIL-STD-461G: CS117
  • RTCA/DO1-60
  • SAE ARP 5412

  • MIL-STD-461G: CS118
  • RTCA-DO-160
  • EN 61000-4-2
  • ISO 10605
  • IEC 801-2
  • SAE J1113-13
  • UK DEF STAN 59-411 (Part 3)
  • Boeing specifications

  • Paragraph 5.2.1 – Hull generated intermodulation interference (IMI)
  • Paragraph 5.2.2 – Shipboard internal electromagnetic environment (EME)
  • Paragraph 5.3.0 – Our capabilities for external RF EME include:
    • Table 1A: External EME for deck operations on ships, full table with the exception of 2,700 MHz-3,600 MHz
    • Table 1B: External EME for shipboard operations in the main beam of transmitters, ranges: 0.01 MHz-400 MHz, 700 MHz-790 MHz, 2,000 MHz-2,700 MHz, 4,000 MHz-5,400 MHz, 5,900 MHz-7,900 MHz, 8,400 MHz-8,500 MHz
    • Table 1C: External EME for space and launch vehicle systems, full table with no exceptions
    • Table 1D: External EME for ground systems, ranges: 0.01 MHz-250 MHz
    • Table 1E: External EME for Army rotary wing aircraft, ranges: 0.01 MHz-150 MHz
    • Table 1F: External EME for fixed wing aircraft, excluding shipboard operations, ranges: 0.01 MHz-700 MHz
  • Paragraph 5.6.0 – Subsystems and equipment electromagnetic interference (EMI)
  • Paragraph 5.6.2 – Shipboard DC magnetic field environment
  • Paragraph 5.7.3 – Electrostatic charge control, Ordnance subsystems
  • Paragraph 5.8.3 – Hazards of electromagnetic radiation to ordnance (HERO)
    • Table 3A: External EME for HERO, ranges: 0.01 MHz-400 MHz, 700 MHz-790 MHz, 5,900 MHz-6,000 MHz, 8,400 MHz-8,500 MHz
  • Paragraph 5.10 – Electrical bonding
  • Paragraph 5.11 – External grounds
  • Paragraph 5.12 – TEMPEST
  • Paragraph 5.13 – Emission control (EMCON)
  • Paragraph 5.14 – EM spectrum compatibility
